Innovative bale take-off technology guarantees high efficiency in the blowroom

2400 kg/h line production
Highly effective cleaning thanks to microtufts
Energy-efficient machine concept

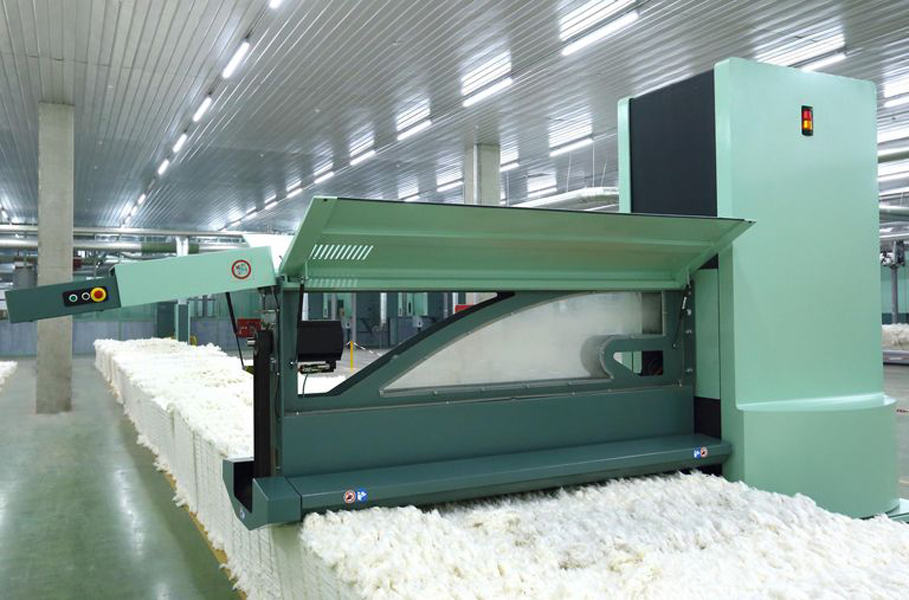

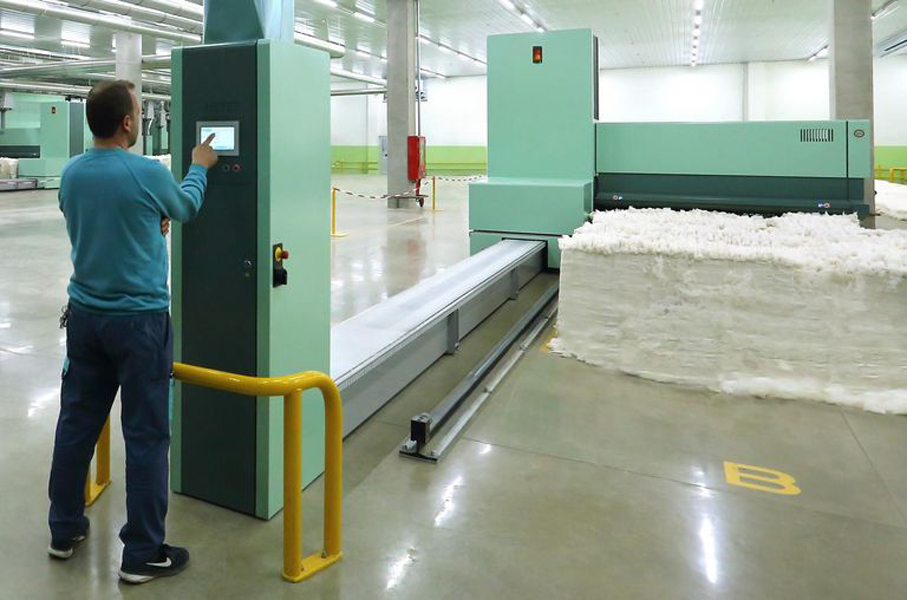

With a line production of up to 2400 kg/h, the UNIfloc A 12 is extremely economical. The machine concept is based on a rugged full shell design, torque controlled direct drives and a unique scanning force measurement of the take-off unit.
The fiber tufts are taken off uniformly by a patented take-off roller system, opened into so-called microtufts and thereby optimally prepared for the subsequent blowroom process. Energy costs can be reduced by feeding braking power back into the electricity network.

TECHNOLOGICAL DATA
Raw material Cotton and man-made fibers up to 65 mm

MACHINE SPECIFICATIONS
Take-off unit [mm] 2 300
Production [kg/h] up to 2 400
Installed power [kW] 14.7
Machine body length [mm] 2 580
Machine body width [mm] 1 230
Machine body height [mm] 2 975
Channel length [mm] 10 – 50 (in steps of 2.5 m)
Net weight [kg] 4 050 (without longitudinal parts, control)
